Product description

Термех Тарг 1988 решение задачи Д5 51 (рис. 5 усл. 1) Термех Тарг 1988 решение задачи Д5 51 (рис. 5 усл. 1)

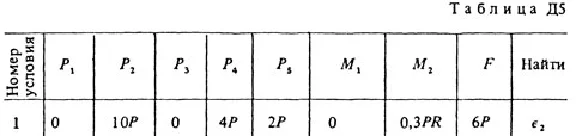

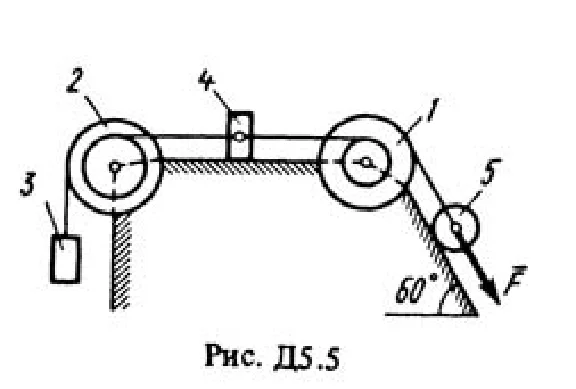

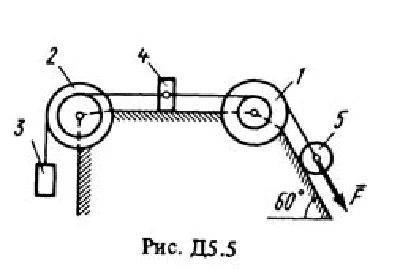

Готовое решение задачи Д5 Вариант 51 по теормеху из задачника Тарга С.М. 1988 года. Смотрите условие к задаче Д5 (стр. 52 в методичке Тарг С.М.): Механическая система состоит из ступенчатых шкивов 1 и2 весом P1 и P2 с радиусами ступеней R1 = R, r1 = 0,4R; R2 = R, r3 = 0,8R (массу каждого шкива считать равномерно распределенной по его внешнему ободу); грузов 3, 4 и сплошного однородного цилиндрического катка 5 весом P3, P4, P5 соответственно (рис. Д5.0-Д5.9 табл. Д5). Тела системы соединены нитями, намотанными на шкивы; участки нитей параллельны соответствующим плоскостям. Грузы Скользят по плоскостям без трения, а катки катятся без скольжения. Кроме сил тяжести на одно из тел системы действует постоянная сила F, а на шкивы 1 и 2 при их вращении действуют постоянные моменты сил сопротивления, равные соответственно M1 и M2. Составить для данной системы уравнение Лагранжа и определить из него величину, указанную в таблице в столбце «Найти», где обозначено: е1, е2 – угловые ускорения шкивов 1 и 2; а3, а4, аС5 – ускорения грузов 3, 4 и центра масс катка 5 соответственно. Когда в задаче надо определить е1, е2, считать R = 0,25 м. Тот из грузов 3, 4 вес которого равен нулю, на чертеже не изображать. Шкивы 1 и 2 всегда входят в систему.

Additional information

Immediately after payment online you will be prompted to download the solution of B51 D5 (Figure 5, condition 1) on the theoretical mechanics of Reshebnik Targ SM 1988 for external students. Solution fulfilled by methodical instructions and control tasks for part-time students of energy and other specialties. The decision formalized in format word, packed to the archive zip. By the way, the decision is included in the product at a discount, "Targ SM 1988 decision 10 14 tasks option."

I would be very happy if after passing the solutions you return to the site and leave a positive review. Believe me, for me it is very important.
Thanks in advance.
