Description

Water symbols Water symbols Water symbols Water symbols Water symbols Water symbols Water symbols Water symbols

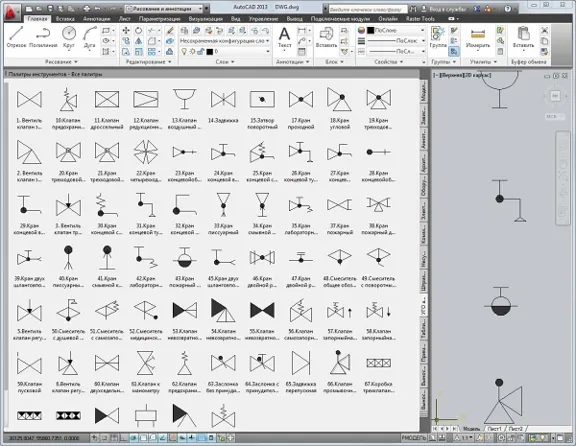

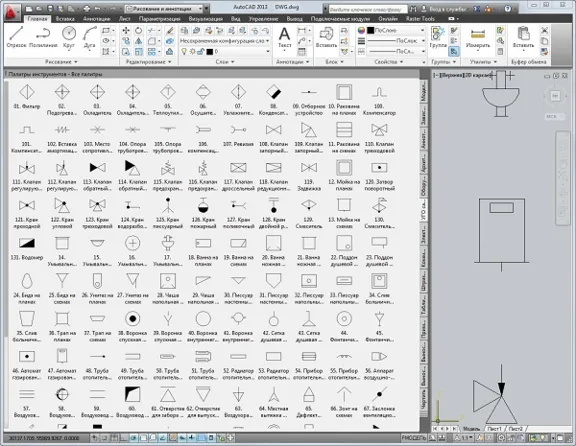

Collection conditional graphic symbols for common design of hydraulic systems and water supply systems in particular.

1. ASB Pipeline
Created by: GOST 2.785-96 "Unified system for design documentation. Graphical symbols. Pipeline ".

2. ASB parts water
SP 41-102-98 "Design and installation of pipelines of heating systems using metal-pipe."

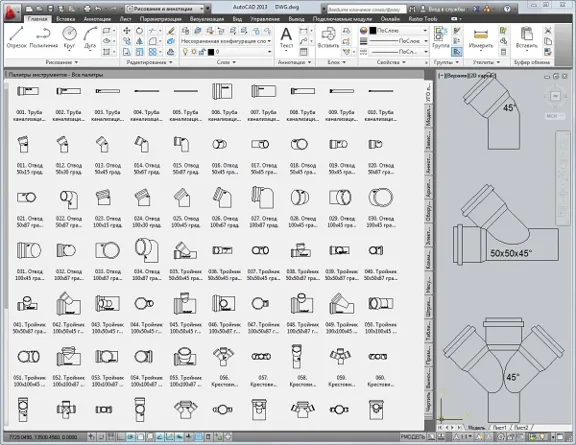

3. ASB sewer systems
GOST 22689.1-89 "Sewer polyethylene pipes and fittings for them. Gauge "

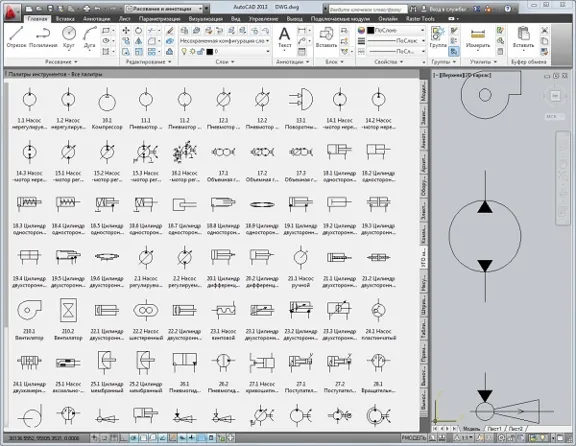

4. ASB hydraulic machines
GOST 2.782-96 "Unified system for design documentation. Graphical symbols. Hydraulic and pneumatic machinery. "

5. ASB copper fittings

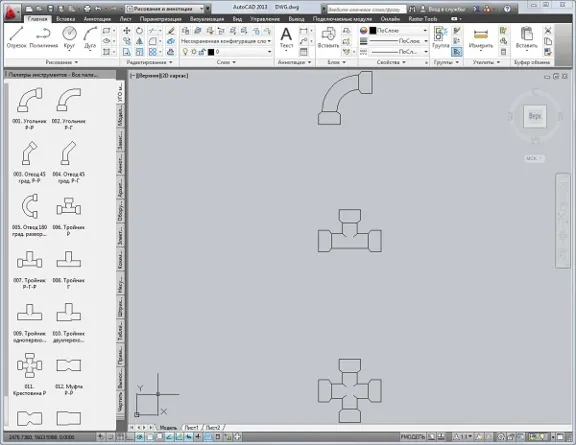

6. ASB plastic pipes

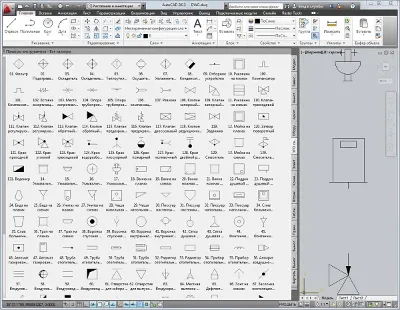

7. ASB sanitation systems
GOST 21.205-93 "System of design documents for construction. Symbols elements of sanitation systems. "

8. ASB pipes and fittings

9. ASB pipeline elements
GOST 2.784-96 "Unified system for design documentation. Graphical symbols. Elements of conduits. "

Format - DWG.
9 regulations.
607 elements.
100% in accordance with GOST.

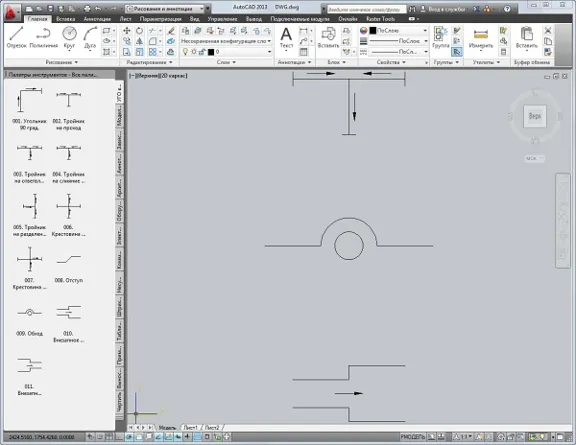

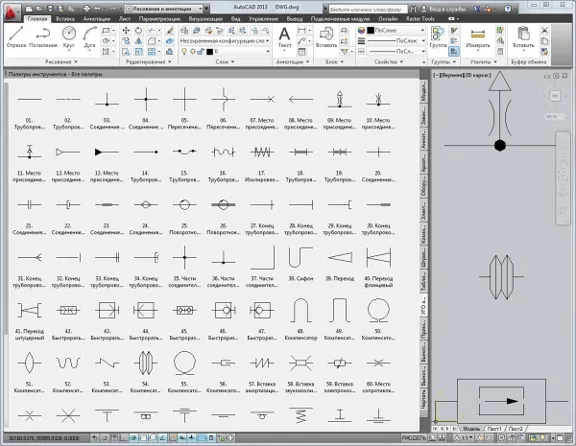

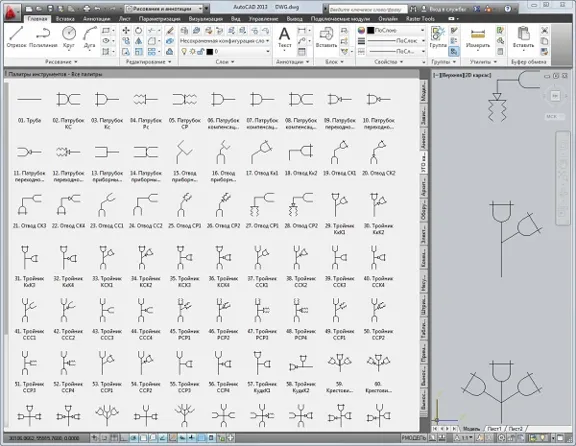

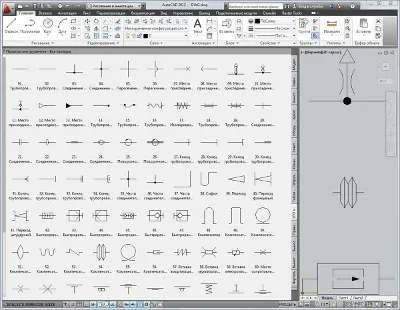

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2004-2014, Compass, ZWCAD, nanoCAD, BricsCAD etc.
