Individual´nyy zhiloy dom 24/5000 Individual residentia

Affiliates: 0,68 $how to earn
Pay with:
i agree with "Terms for Customers"
Sold: 0
Uploaded: 14.05.2019
Content: individualnyy-zhiloy-dom.rar 882,51 kB

Description

Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia Individual´nyy zhiloy dom 24/5000 Individual residentia

Individual residential house
6 sheets of A2 graphic parts + 40 sheets of A4 explanatory note

Individual residential house

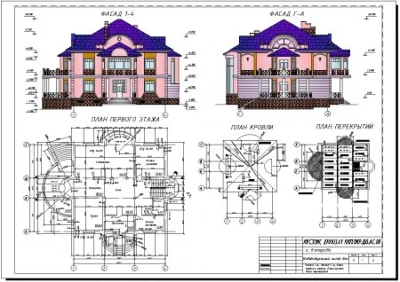

Sheet 1. Features of constructive solutions: Facade 1-4, Facade GА, Ground floor plan, Roof plan, Floor plan.

Individual residential house

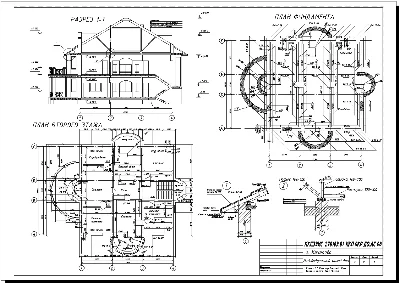

Sheet 2. Features of constructive solutions: Section 1-1, Foundation Plan, Second Floor Plan, Node 1, Node 2.

Individual residential house
Sheet 3. Features of the design of building structures: Collection of loads, FL 12-24, 1-1, Specification of the foundation, Settlement area of ​​the foundation, 2-2, C1, Loop P1,, Statement of steel consumption per element, kg, Technical and economic indicators.

Individual residential house
Sheet 4. Features of the construction technology of civil buildings: Schedule of works with the schedule of labor movement, Technical and economic indicators, Material and technical resources, Pooperative quality control, Tolerance and deviation scheme, General scheme of production of works, Scheme of production operations.

Individual residential house
Sheet 5. Features of the technology of construction of civil buildings: Instructions for the performance of work, Safety Instructions, Map Scope.

Individual residential house
Sheet 6. Features of the construction technology of civil buildings: Schedule of the production of works with the schedule of movement of labor, the schedule of movement of machinery and mechanisms, the schedule of delivery and consumption of building materials, technical and economic indicators.

Additional information

The contents of the explanatory note:

Exercise 1
Schedule for the implementation of a comprehensive course project - 2
Annotation - 3
Introduction - 6
1. Features of design solutions for residential and public buildings - 7
1.1 General part - 7
1.1.1 Construction Area - 7
1.1.2 Volumetric planning solution - 7
1.2 Architectural and constructive solution - 7
1.2.1 Foundation - 7
1.2.2 Walls and partitions - 8
1.2.3 Overlaps - 8
1.2.4 Ladders - 8
1.2.5 Roof, roof, drainage - 8
1.2.6 Windows, doors - 9
1.3 Finishing - 9
1.4 Explication of floors - 10
1.5 Specification of the elements of filling openings - 10
1.6 Specification of prefabricated elements - 11
1.7 Engineering equipment - 11
1.7.1 Power Supply - 11
1.7.2 Sewerage - 11
1.7.3 Water supply - 11
1.7.4 Gas supply - 11
1.7.5 heating system - 11
1.8 Technical and economic indicators - 12
2. Features of the design of building structures - 13
2.1 Calculation of the Foundation - 13
2.2 Determination of the elevation of the base of the foundation - 14
2.3 Determination of the number of foundation blocks by height - 14
2.4 Determination of the width of the pillow - 14
2.5 Collecting loads - 15
2.5.1 Calculation of the load on 1m² roof - 15
2.5.2 Calculation of the load on 1m ² of the cover plate - 16
2.5.3 Calculation of the load on 1m² floor slab -16
2.6 Calculation of the load on 1 basement length - 17
2.7 Determination of the required width of the foundation cushion - 18
2.7.1 Determination of specific friction and angle of internal friction - 19
2.7.2 Determination of the calculated resistance R - 19
2.7.3 Specification of the width of the strip footing cushion - 19
2.7.4 Checking the selected base cushion width - 19
2.8 Calculation of strip footing on the material - 19
2.8.1 Load, taking into account the reliability coefficient of responsibility - 19
2.8.2 Determination of soil resistance p - 20
2.8.3 Determination of the length of the cantilever basement section - 20
2.8.4 Calculation of the transverse force per meter of the foundation length - 20
2.8.5 Bending moment acting on the edge of the foundation block - 20
2.8.6 Determination of the required area of ​​cushion reinforcement - 20
2.8.7 Testing the strength of the cushion against the action of transverse force - 20
2.9 Determination of the diameter of the lifting loops - 20
3. Features of the construction of civil buildings - 22
3.1. Technological map on the facade finish - 22
3.1.1 Map application area - 22
3.1.2 Calculation of the volume of work - 22
3.1.3 Calculation of labor costs and wages - 22
3.1.4 Work instructions - 23
3.1.5 Safety Instructions - 24
3.1.6 Calculation of technical and economic indicators - 25
3.2. Schedule of work production - 25
3.2.1 Calculation of the amount of work - 25
3.2.2 Statement of labor and machine time costs - 27
3.2.3 Selection of the leading mechanism - 29
3.2.4 Statement of the need for building structures and materials - 30
3.2.5 Work guidance - 31
3.2.5.1 Earthworks - 31
3.2.5.2 Installation of foundations - 31
3.2.5.3 Waterproofing foundations - 31
3.2.5.4 Brick masonry walls - 32
3.2.5.5 Installation of reinforced concrete structures - 33
3.2.5.6 Roofing - 33
3.2.5.7 Floor installation - 34
3.2.5.8 Finishing works - 34
3.2.6 Safety Instructions - 35
3.2.6.1 Excavation work - 35
3.2.6.2 Installation of reinforced concrete elements - 35
3.2.6.3 Roofing work - 36
3.2.6.4 Electrical work - 36
3.2.6.5 Finishing works - 37
3.2.7 Calculation of technical and economic indicators - 38
Conclusion - 39
References - 40

Note: File format - RAR archive: Drawings in the format: DWG - Autodesk AutoCAD + Explanatory note in the format: DOC - Microsoft Office Word 2003
